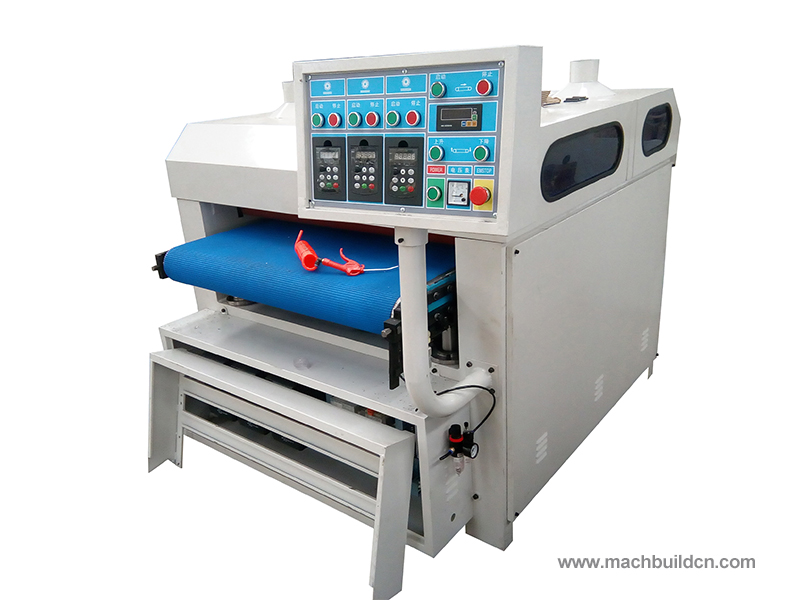

KC1000-3R Wire Brush Sander
Category: Wire Brush MachineModel: KC1000-3R
Brand: KING WING
Condition: New Condition
Supply Ability: 30 Sets Monthly
Availability: PreOrder – Put order into production on receipt of deposit
Payment Method: T/T, Trade Assurance, Credit Card, XTransfer, L/C
Price Range: 4000-9800 USD/SET
Keywords:wire brush sander
Views: Details
multi-roller wire brush texture machine
Parameter
| Item | 1st roller | 2nd roller | 3rd roller |
| Brush style | Wire brush 0.5mm/0.3mm/0.2mm | Wire brush | Dupont brush |
| Motor power | 7.5kw | 7.5kw | 5.5kw |
| Inverter power | 7.5kw | 7.5kw | 5.5kw |

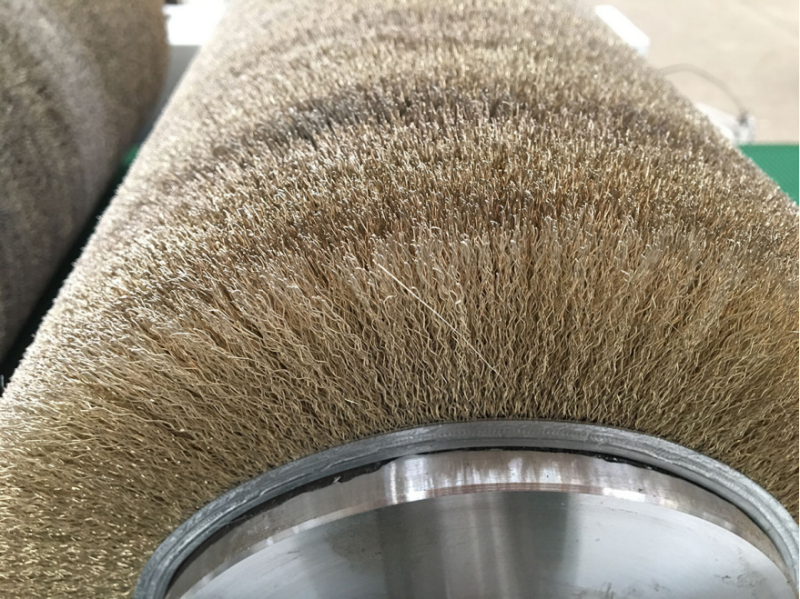

| Wire brush diameter | 0.2mm, 0.3mm, 0.5mm customized | ||
| Require about your wood | Carbon wood/ not fresh wood | ||

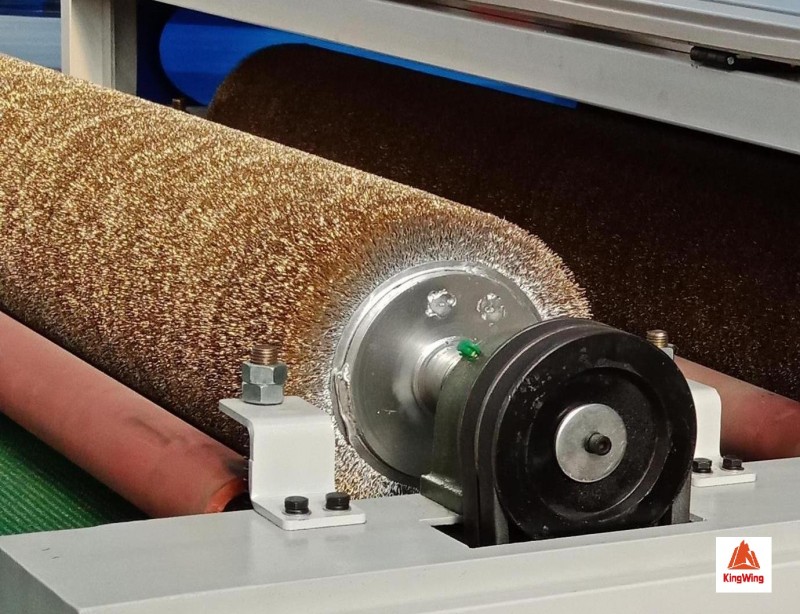

| Wire brush roller diameter | 240mm | ||
| Wire brush roller steel bar diamter | 45mm/ bearings change to bigger one | ||
| Conveyor steel plate thickness | 8mm/ add steel bar under conveyor distance between steel bar 300mm | ||

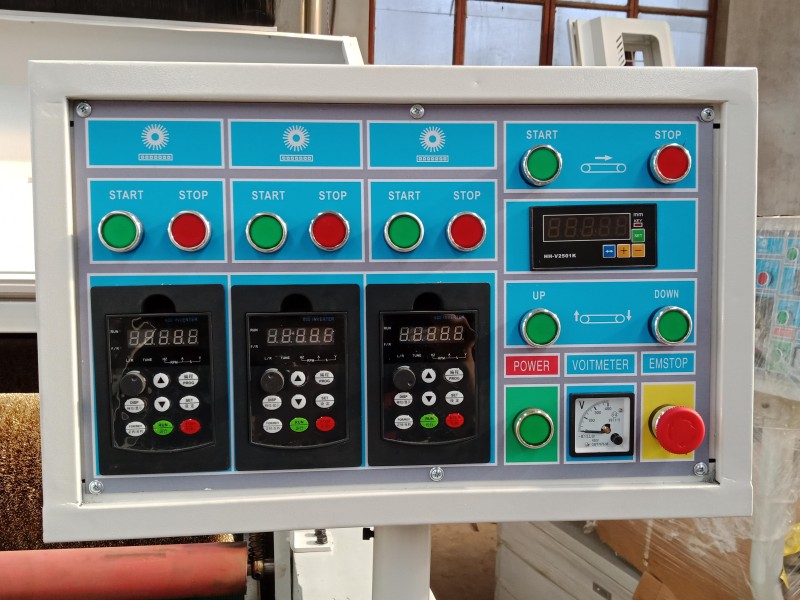

| Roller turning speed | By adjust the inverter speed on control panel | ||
| Conveyor motor size | 1.5 kw | ||
| Conveyor speed | Adjustable VFD speed control 5-30m/min | ||
| Conveyor up & down | By press electrical button on control panel | ||
| Max. Working width | 1000mm | ||
| Model | KC1000-3R | ||
| Packing size | 2900*1500*1700mm | ||
| G.W. | 1100kg | ||
