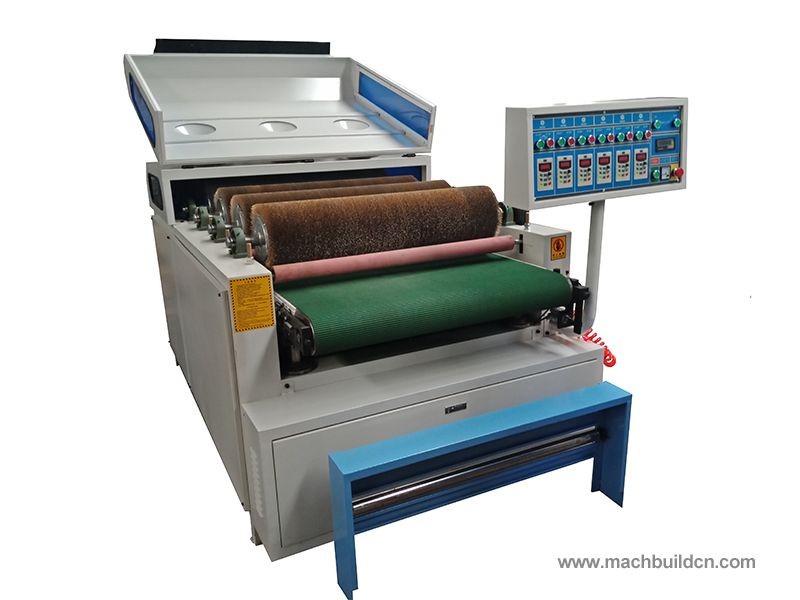

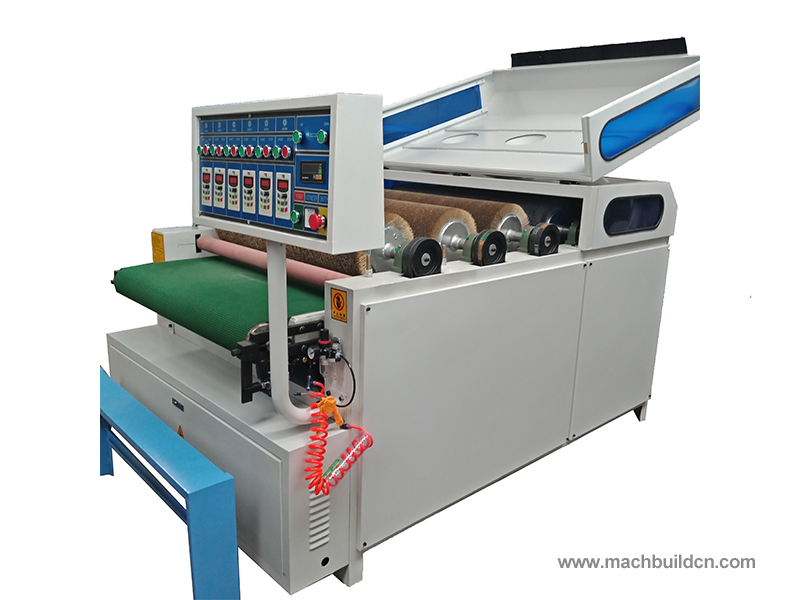

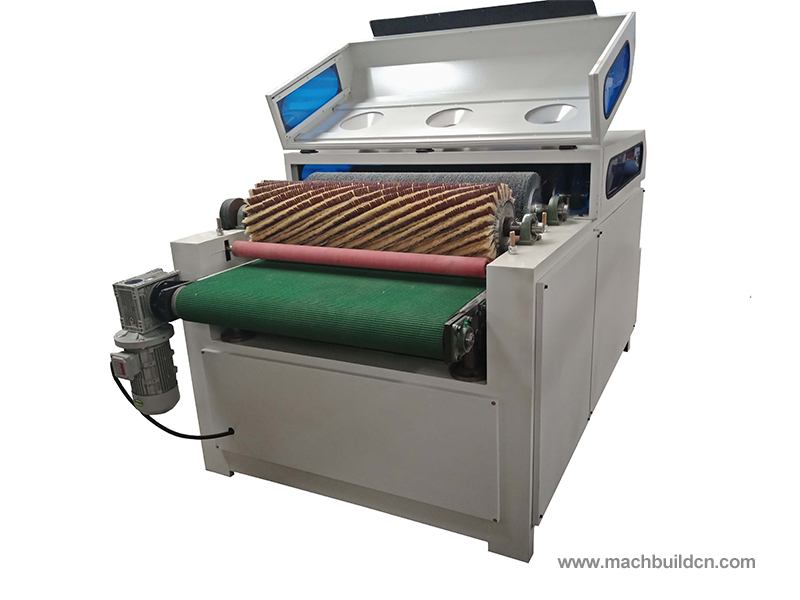

KC1000-5R Wire Brush Sander
Category: Wire Brush MachineModel: KC1000-5R
Brand: KING WING
Condition: New Condition
Supply Ability: 30 Sets Monthly
Availability: PreOrder – Put order into production on receipt of deposit
Payment Method: T/T, Trade Assurance, Credit Card, XTransfer, L/C
Price Range: 4800-2200USD/SET
Details

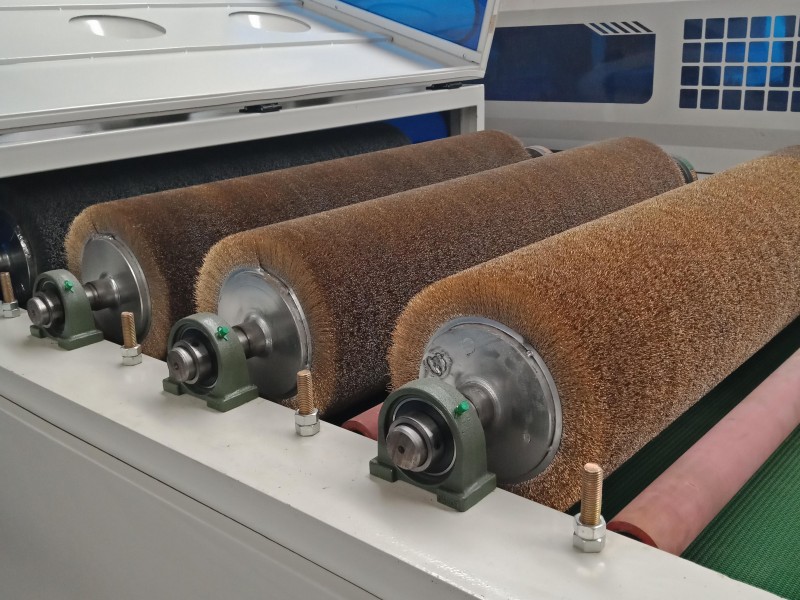

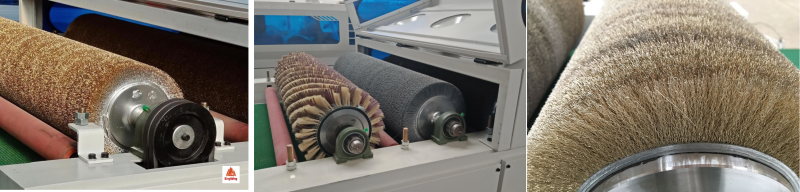

Multi-roller Wire Brush Texture Machine
Parameter
|
Item |
1st roller/ 2nd roller/3rd roller |
4th roller |
5th roller |
|
Brush style |
Wire brush 0.5mm/0.3mm/0.2mm |
Dupont brush |
Sandpaper brush |
|
Motor power |
7.5kw |
5.5kw |
2.2kw |
|
Inverter power |
7.5kw |
5.5kw |
2.2kw |
|
Wire brush diameter |
0.2mm, 0.3mm, 0.5mm customized |
||
|
Require about your wood |
Carbon wood/ not fresh wood |
||
|
Wire brush roller diameter |
260mm |
||
|
Wire brush roller steel bar diamter |
45mm/ bearings change to bigger one |
||
|
Conveyor steel plate thickness |
8mm/ add steel bar under conveyor distance between steel bar 300mm |
||
|
Roller turning speed |
By adjust the inverter speed on control panel |
||
|
Conveyor motor size |
1.5 kw change reuducer motor to inverter |
||
|
Conveyor speed |
Adjustable VFD speed control 5-30m/min |
||
|
Conveyor up & down |
By press electrical button on control panel |
||
|
Max. Working width |
1000mm |
||
|
Model |
KC1000-5R |
||
|
Packing size |
2900*1700*1700mm |
||
|
G.W. |
1300kg |
||
|
Voltage |
accept customized |
||
