Details

1.3 meter’s wire brush machine’s support table use thicker plates, Wire brush roller diameter use 260mm, spindle diameter bigger & strong to stop wire brush/ wire brush roller bend.

Max. Working width 1300mm

Wire brush roller diameter 260mm (all covers can’t open when machine running)

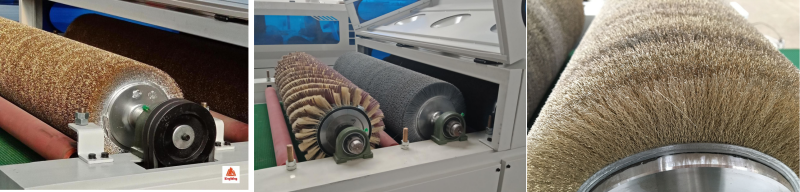

Different roller material functions:

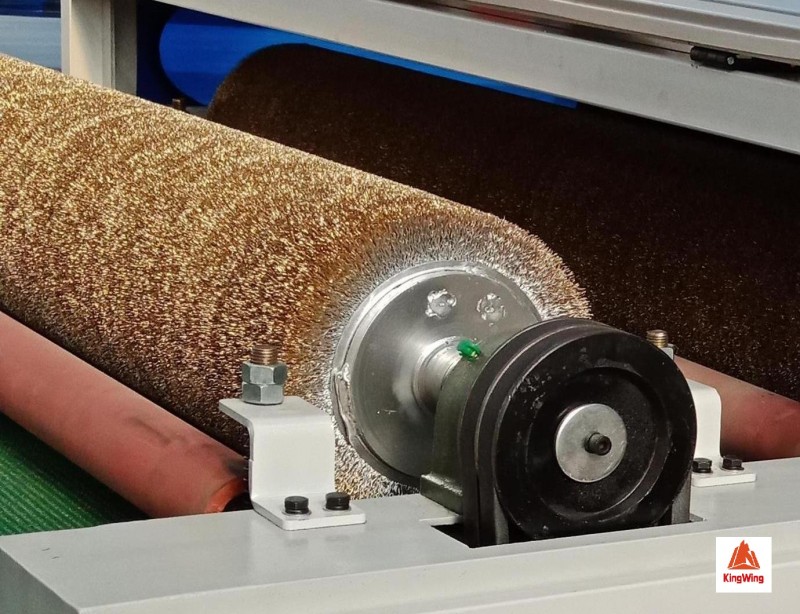

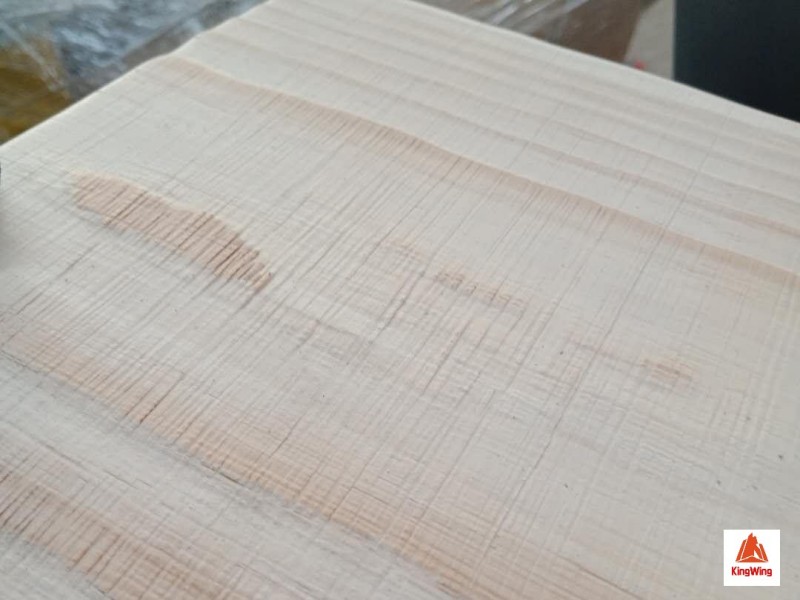

Wire brush roller: use to make antique drawing on solid wood board.

Dupont brush roller: polishing wood burrs on fresh wood (it will have wood burrs after wire brush drawing)

Sandpaper roller brush: sanding wood board.

Parameter

Item	1^st roller	2^nd roller	3^rd roller	4^th roller	5^th roller
Brush style	Wire brush	Wire brush	Wire brush	dupont brush	sandpaper brush

Motor power	7.5kw	7.5kw	7.5kw	5.5kw	2.2kw
Inverter power	7.5kw	7.5kw	7.5kw	5.5kw	2.2kw
Wire brush diameter	0.2mm, 0.3mm, 0.5mm customized
Require about your wood	Carbon wood/ not fresh wood
Wire brush roller diameter	240mm/260mm/280mm/300mm (if your wood harder please choose smaller diameter)
Roller turning speed	By adjust the inverter speed on control panel
Conveyor motor size	0.75 kw
Conveyor speed	Adjustable VFD speed control 5-30m/min
Conveyor up & down	By press electrical button on control panel
Max. Working width	1300mm

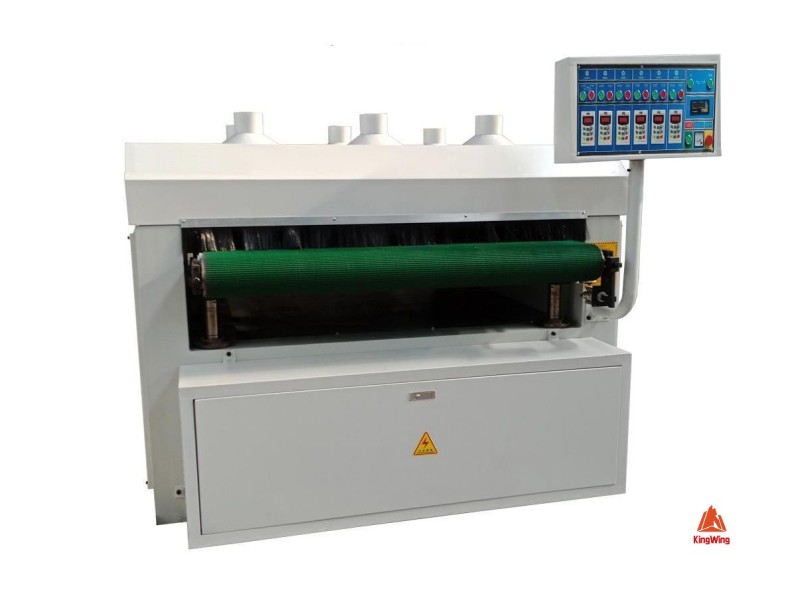

Model	KC1300-5R
