KC1220D CNC Wood Lathe Technical Parameters
|
Parameter Category
|
Specification Details
|
|
Machine Identification
|

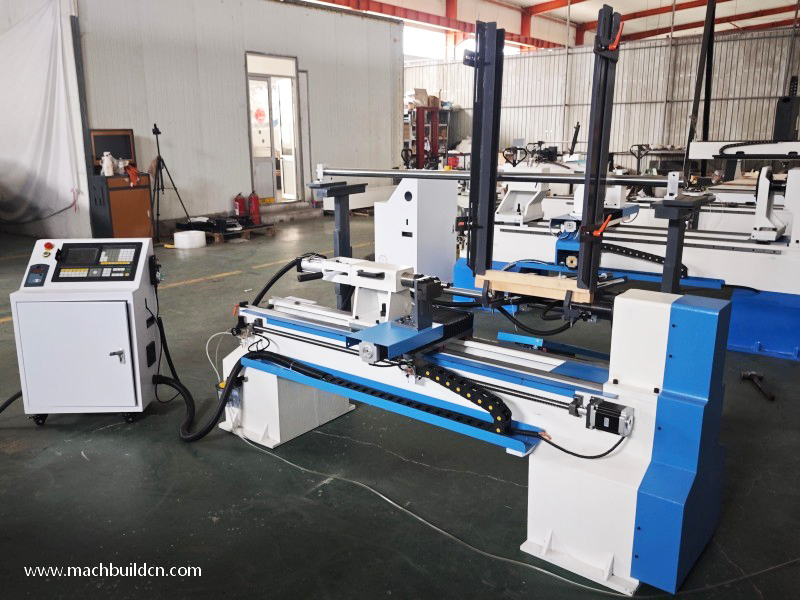

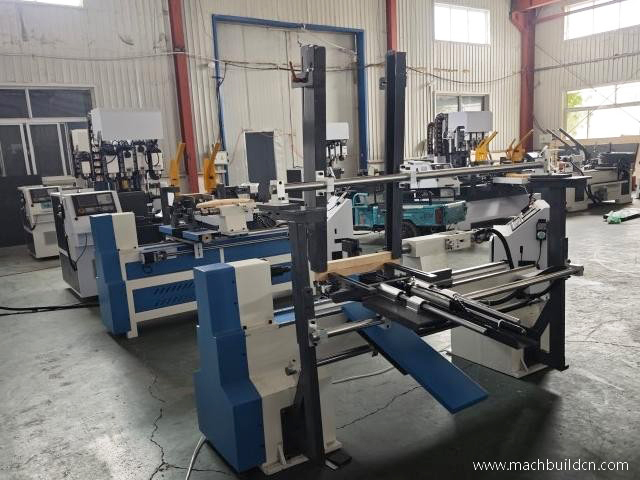

Machine Name: Single-Axis Single-Knife Automatic Feeding CNC Wood Lathe
Model: KC1220A
|
|
Processing Capacity
|
Processing Length: 100-1200mm
Material Diameter: 20-200mm
Max Feed Speed: 2500mm/min
Processing Range: Stair balusters, vase profiles, table/chair legs, European furniture Roman columns, wooden hangers and basins, cylindrical, conical, arc-shaped, spherical, and other complex-shaped wooden rotary bodies or semi-finished products.
|
|
Core Configuration
|
Spindle Power: 3kw
Spindle Speed: 0-1500r/min (Frequency conversion stepless speed regulation)
Working Voltage: 3-Phase 380V AC (220V 3-Phase customizable)
Working Frequency: 50HZ
Pneumatic Pressure: 0.4-0.6Mpa
|
|
Physical Characteristics
|
Machine Dimensions (LxWxH): 2300 x 1200 x 1300 mm
Net Weight: 650kg
Packaging Dimensions (LxWxH): 2450 x 1350 x 1500 mm (Fumigation-Free)
Gross Weight: 750kg
|
|
Automation
|

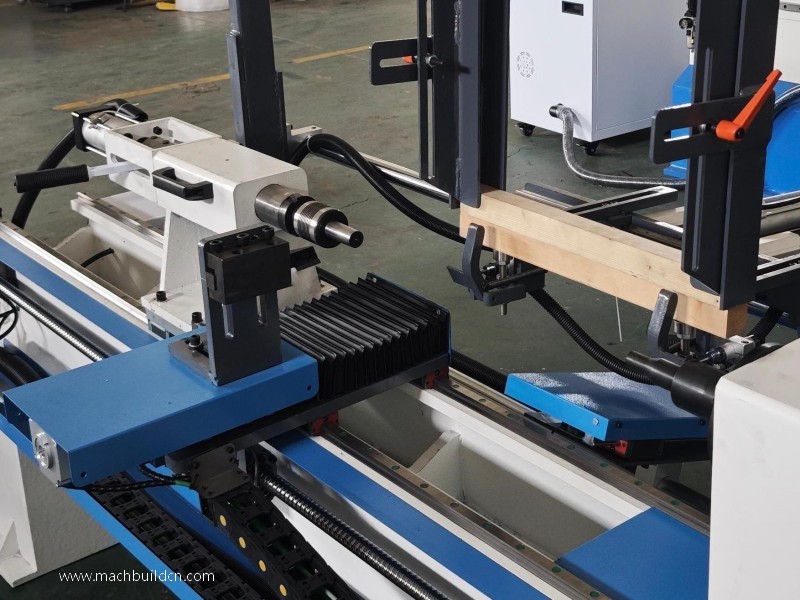

Loading Size: 10-120mm diameter, 100-1200mm length
|
|
Item
|
Specification
|
|
Machine Model
|
KC1220A
|
|
Processing Type
|
Turning
|
|
Processing Size
|
1200X200
|
|
Bed
|
Integral Cast Iron
|
|
Main Power Motor
|
3KW380V
|
|

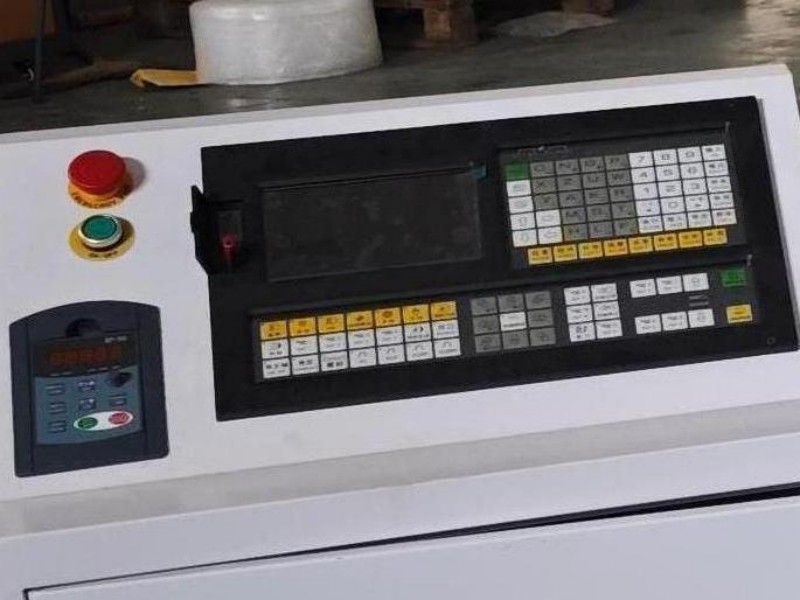

Control System
|
Beijing Guangxingkai Special Lathe System (with handwheel)
|
|
Rail
|
20 Square Rail
|
|
Transmission Method
|
Three-axis Screw Transmission
|
|
Driver
|
Yankong Drive
|
|
Transmission Motor
|
450B Motor
|
|
Lubrication
|
Semi-automatic Oil Injection
|
|
Matching Tools
|
Lathe Special Tools
|
|
Special Clamping
|
Accept customized
|
