CNC WOOD Lathe

Category: CNC Wood Lathe

Model: KC1512-3S

Brand: KING WING

Condition: New Condition

Supply Ability: 30 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: T/T, Trade Assurance, Credit Card, XTransfer, L/C

Price Range: 4000-9800 USD/SET

Views:

Details

Core Technology

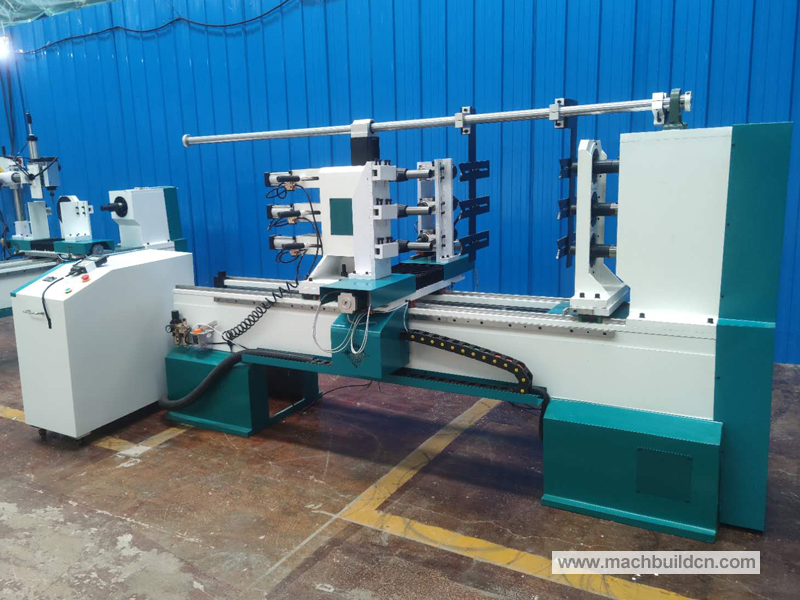

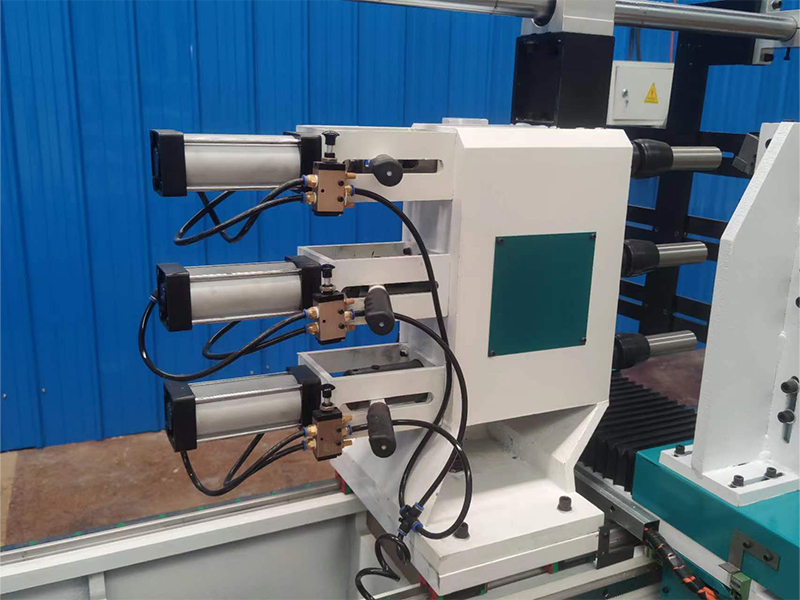

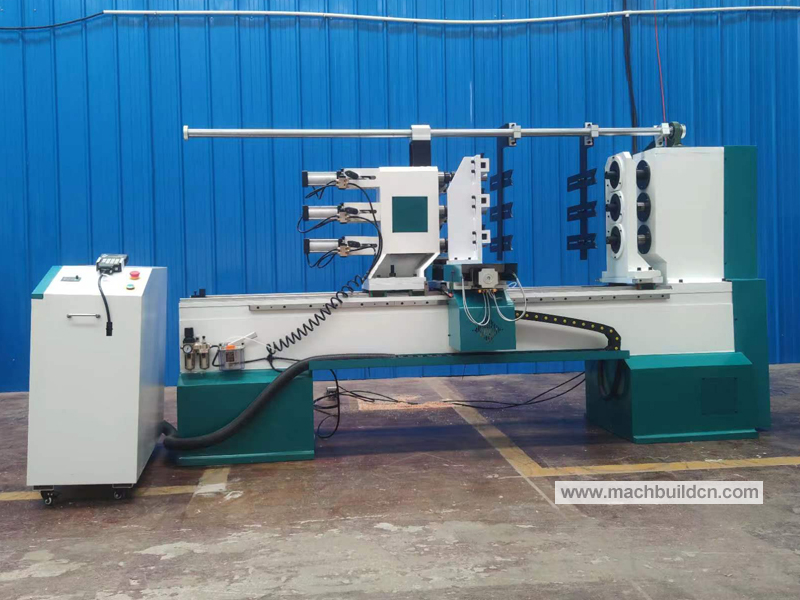

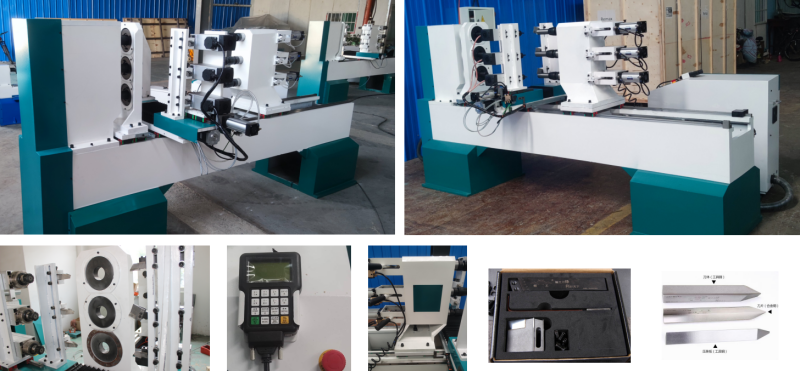

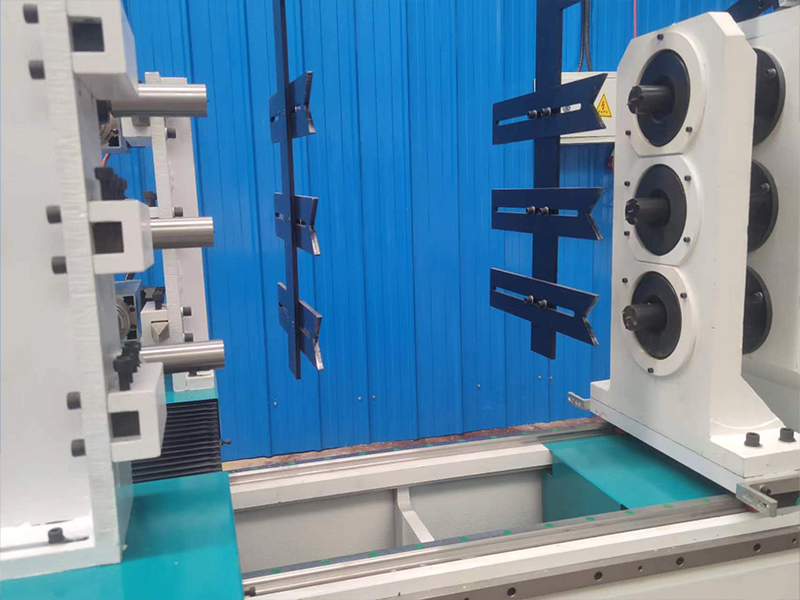

This 3-axis CNC wood lathe integrates triple grooving spindles and heavy cast bed (60cm width). With servo-driven positioning (±0.01mm) and variable speed control (0-3000r/min), it performs simultaneous turning, slotting, and engraving on three workpieces per cycle.

Applications
▸ Furniture: Mass production of chair legs, table bases, curved sofa components
▸ Architectural Decor: Stair balusters, fluted columns, carved moldings (Max. length 3m)
▸ Crafts: Wooden vases, billiard table legs, musical instrument parts

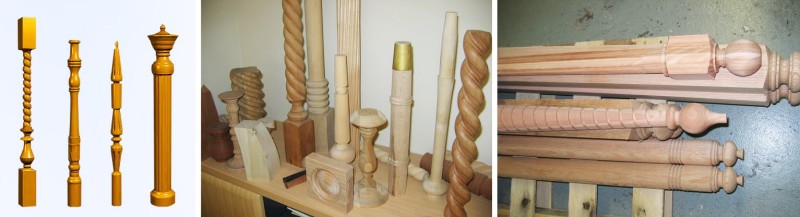

Finished Products

• Stair Spindles: Solid wood posts with helical grooves & relief patterns, surface roughness Ra≤3.2μm

• Carved Furniture Legs: Seamless curvature transitions for classic/modern designs

• Artisan Hollow Vases: Slotting-perforated vessels under Ø160mm

Parameter

Parameter

Specification

Machine Name

3-Axis 3-Tool CNC Wood Lathe with Triple Grooving Spindles

Model

KC1512-3S

Processing Length

100–1500mm (Customizable: 2m / 2.5m)

Material Diameter

● Single Axis Use: Ø20–300mm
● Triple-Axis Use: Max Ø120mm

Max Feed Speed

2000mm/min

Processing Range

Stair balusters, vases, furniture legs, Roman columns, wood hangers, bowls,
cylindrical/conical/arc/spherical wood crafts & semi-finished parts

Min Setting Unit

0.01mm

Spindle Power

5.5kW Servo Spindle

Spindle Speed

0–1500r/min

Voltage

3-Phase 380V AC (Customizable: 220V)

Frequency

50Hz

Pneumatic Pressure

0.4–0.6MPa

Machine Dimensions (L×W×H)

2900×1200×1600mm

Net Weight

1600kg

Packaging Dimensions

3000×1300×1780mm (Fumigation-Free)

Gross Weight

1700kg
