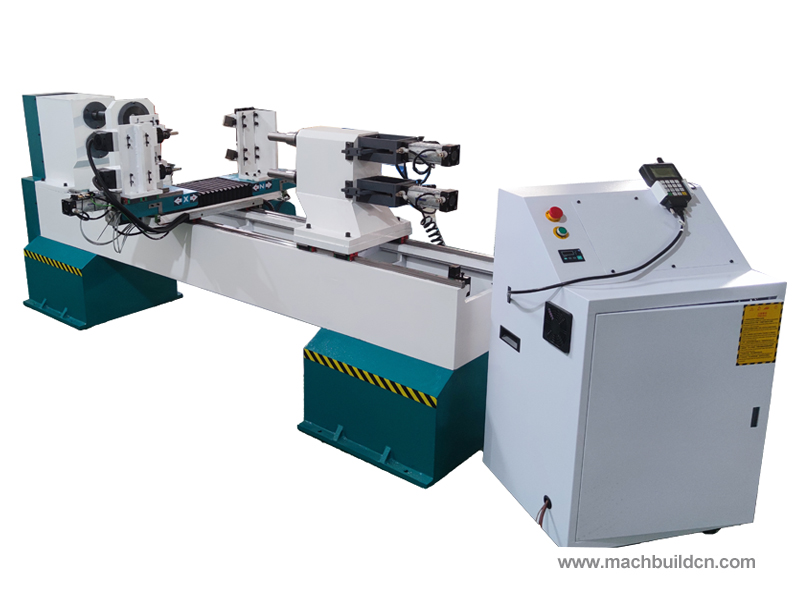

CNC WOOD LATHE
Category: CNC Wood LatheModel: KC1516-2S
Brand: KING WING
Condition: New Condition
Supply Ability: 30 Sets Monthly
Availability: PreOrder – Put order into production on receipt of deposit
Payment Method: T/T, Trade Assurance, Credit Card, XTransfer, L/C
Price Range: 4000-9800 USD/SET
Details
⚡ Key Applications
Simultaneously processes 2 workpieces with dual-rotation axes + side grooving spindles, ideal for:

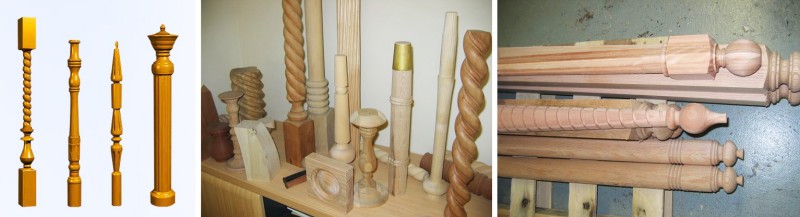

• Architecture: Stair balusters (90 sec/piece), newel posts, handrail connectors
• Furniture: Table legs, chair arms, bed posts, wooden racks
• Crafts: Baseball bats, wooden vases, billiard cues, turned art pieces
• Custom: Irregular rotors (Ø≤300mm, L≤1500mm)
🔩 Technical Highlights
• Precision: Taiwan HIWIN rails + German ball screws (≤0.01mm tolerance)
• Efficiency: 200% faster with dual-blade coordination & frequency conversion
• Operation: DSP control, CAD file import via USB (no programming needed)
💰 Cost Advantage
From $3,800 (Model 1530) – 15% lower than competitors!
✅ Near Jinan Manufacturing Hub: Local supply chain (cast iron beds, linear guides) cuts production costs.
✅ 3-year warranty + lifetime technical support.
🏆 Why Global Buyers Choose Us
• No skilled labor required: Train operators in 1 day
• Export-ready: FOB/CIF shipping & customs documentation support
🌟 Try Now: Upload your design – we’ll provide a free machining simulation report!
Parameter
|
Parameter |
Specification |
|
Machine Name |
2-Axis 2-Tools CNC Wood Lathe with 2 Grooving Spindles |
|
Model |
KC1516-2S |
|
Processing Length |
100–1500mm (Customizable: 2m / 2.5m) |
|
Material Diameter |
● Single Axis Use: Ø20–300mm |
|
Max Feed Speed |
2000mm/min |
|
Processing Range |
Stair balusters, vases, furniture legs, Roman columns, wood hangers, bowls, |
|
Min Setting Unit |
0.01mm |
|
Spindle Power |
5.5kW Servo Spindle |
|
Spindle Speed |
0–1500r/min |
|
Voltage |
3-Phase 380V AC (Customizable: 220V) |
|
Frequency |
50Hz |
|
Pneumatic Pressure |
0.4–0.6MPa |
|
Machine Dimensions (L×W×H) |
2900×1200×1400mm |
|
Net Weight |
1450kg |
|
Packaging Dimensions |
3000×1300×1580mm (Fumigation-Free) |
|
Gross Weight |
1550kg |
