1. Product Overview

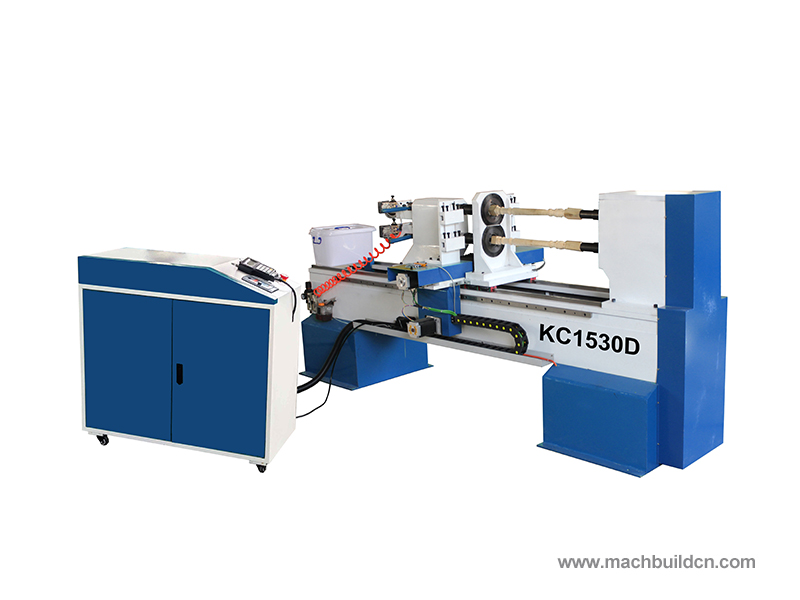

The KC1530-D CNC Wood Lathe is a high-performance automated machining equipment designed for complex rotary wood products. Featuring a dual-spindle structure (max. turning diameter: 300mm single/160mm double), it integrates Taiwan HIWIN linear guides and ball screw transmission to ensure precision and stability. Equipped with a DSP intelligent control system supporting graphical programming and USB drive file import, it achieves high-efficiency production with "5 minutes per workpiece".
2. Key Parameters
• Processing Dimensions:
◦ Max. working length: 1500mm (optional 2000/2500/3000mm), suitable for extra-long workpieces like staircase balusters.
◦ Max. turning diameter: 300mm (single spindle for roughing), 160mm (double spindles for precision processing at same time).
• Power System:
◦ 4kW variable-frequency spindle motor (0–3000rpm), adaptable to wood hardness and anti-vibration.
◦ YAKO stepper motors with ±0.02mm repeat positioning accuracy.
• Structural Design:
◦ Cast bed (net weight: 1550kg) with high-frequency quenching, ensuring shock absorption and deformation resistance.
◦ Hard alloy double-sided cutting tools for 70% roughing + 30% finishing, improving surface smoothness by 40%.
3. Technical Innovations
• Dual-Knife Synergy: Layered cutting technology increases efficiency by 50% compared to single-tool processing.
• No-Code Design: Proprietary software converts 3D models directly into machining paths.
• Enhanced Rigidity: 70mm thickened spindle and Morse Taper #5 tailstock prevent vibration during large-column (e.g., 40cm Roman columns) machining.
4. Applications
Ideal for batch production in small-to-medium wood workshops:
1. Furniture Components: Table legs, sofa feet, cabinet posts with complex curves.
2. Architectural Decor: Stair handrails, European-style columns, carved pillars (≤3m length).
3. Sports Equipment: Baseball bats, billiard cues, fitness handles.
4. Artware: Wooden vases, pen holders, Buddhist beads, bowls.
5. Custom Production: Small-batch orders like vintage furniture parts or musical instrument components.
Supported Materials: Hardwood (oak, teak), softwood (pine, beech), and composites.
